CNC FRAME GANTRY – CNC-TRAMWAY

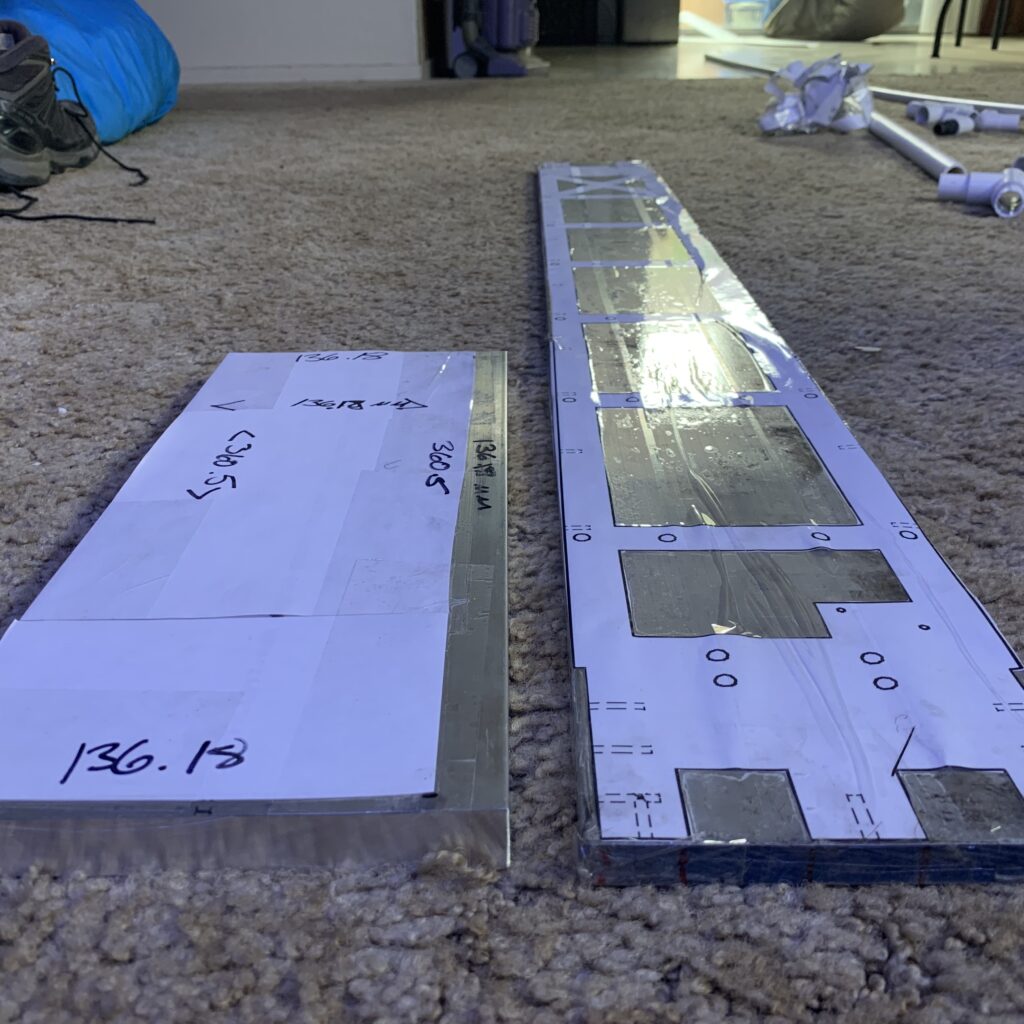

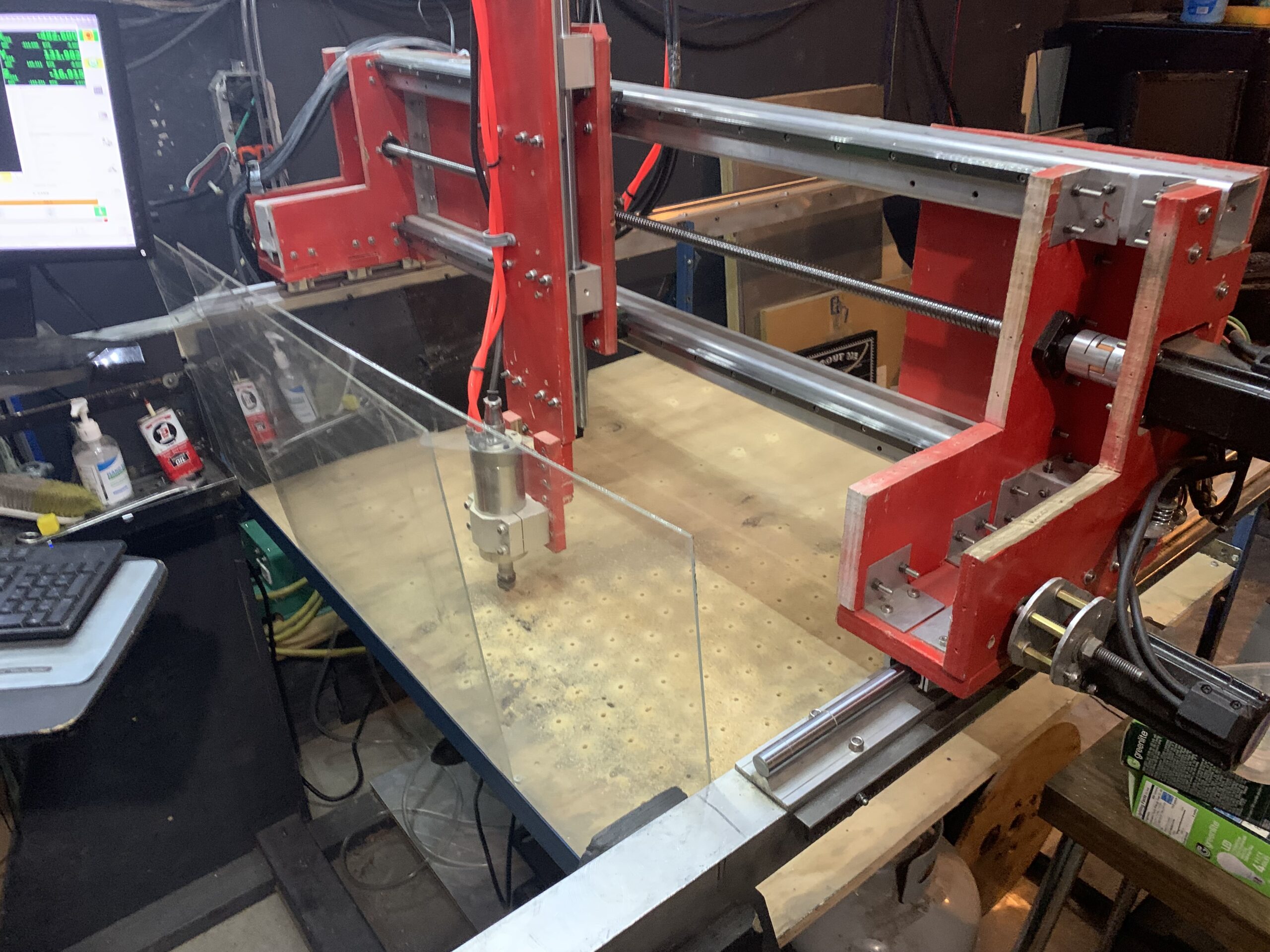

NX Custom CAD CAM CNC Frame building itself from Painted Wood to an Aluminum Frame resulting improved Frame Torque, Precision, Gear Track Pinion & Suspension.

Operator Computer Terminals on Both Ends with Floating Keyboards & LCD Panels the Operators Chairs are Open & Accesible to the Machine Frame.

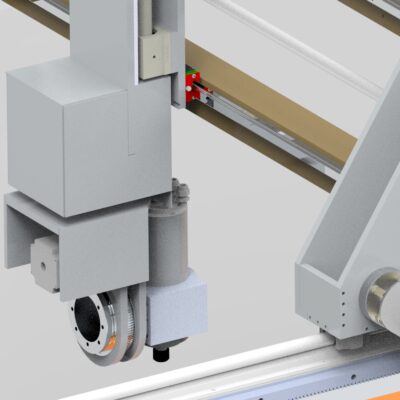

4th Axis C-Head mounts to bottom of Z with Same Bolt Pattern as 3X Different Spindle Mount Brackets allowing Removal of C-Head & Installation of Spindles to the Bottom of Z for a Simple 3-Axis Router Setup.

C-Head Rotates 360 with 4th Axis Indexing & a Through Hub with Bearing that can Route Utilities to the Head.

A Slotted Hub Plate Interchanges any Head Indexing 4th Axis.

5th Axis Head Interchanges into the 4th-Axis C-Head & routes Utilities through the Bearings & Hubs to the

B-Head 5th Axis Indexing Mount Plate
- which can interchange any Reasonably Fitting Attachment.
  - Spindles, Extruders & Dispener
  - Brazing & Welding
  - Common Tools and Saws
  - Custom CAD Anything on 5th B
- 800 Watt Water Cooled Spindle
  - planned 3″ – 6″ Foam Cutting Drill Bit
  - 100% Sealed from all Dust & Foam Particulate matter
  - Smallest available version of Water Cooled Spindles
- High Temperature Brazing Specification
  - Metal Gear Trains and Bearings.
    - No Rubber Belts or Plastic
- will be Re-Vised & Updated at least once before Version 2
5th-Axis Software is $4000+ Expensive
- Adapt 3-Axis Sliced Block
  - Avoid the higher cost of 5-th Axis Milling
  - Doesn’t have Negative Volume Capability
- Adapt 5th Axis Frame for 3-Axis ToolPaths
  - CAM Engineer by way of G-Code Editing
    - Achieve 5th-Axis
      - Negative Volumes
    - With only 3-Axis Software
      - Simply put,
        Imagine the Machine Oriented 45 Degrees to the Wall not the Floor.
    - This Proposed WorkAround achieves 5-Axis Negative Volumes
      - with only 3-Axis Software
        and a G-Code Indexed B-Head Set 45 Degrees followed by a 3-Axis CAM Toolpath.
      - Has not been tested Known Good
        is 3-Axis Theory of Post Processor Kinematics
      - Is worth Saving $4000+ of 5th Axis Software

Custom CAD Tools may be Interchanged into the 4th-Axis C-Head

7th Axis Automation Stage Head with Oxy Propane Brazing

Any Common Tool Favor of Pneumatic
- may be drawn in 3D CAD,
- Interchanged into the Head
- Driven with CAM.
AC/DC Hand Tools can be override of the Workpiece, Feed, Speed
- jamming the Electric Motor & Fail

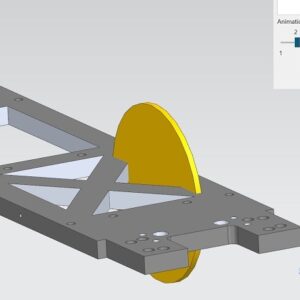

  - The illustration is incorrect as shown for verification purpose only I have proven this Pneumatic Angle Grinder Toolpath Known Good.

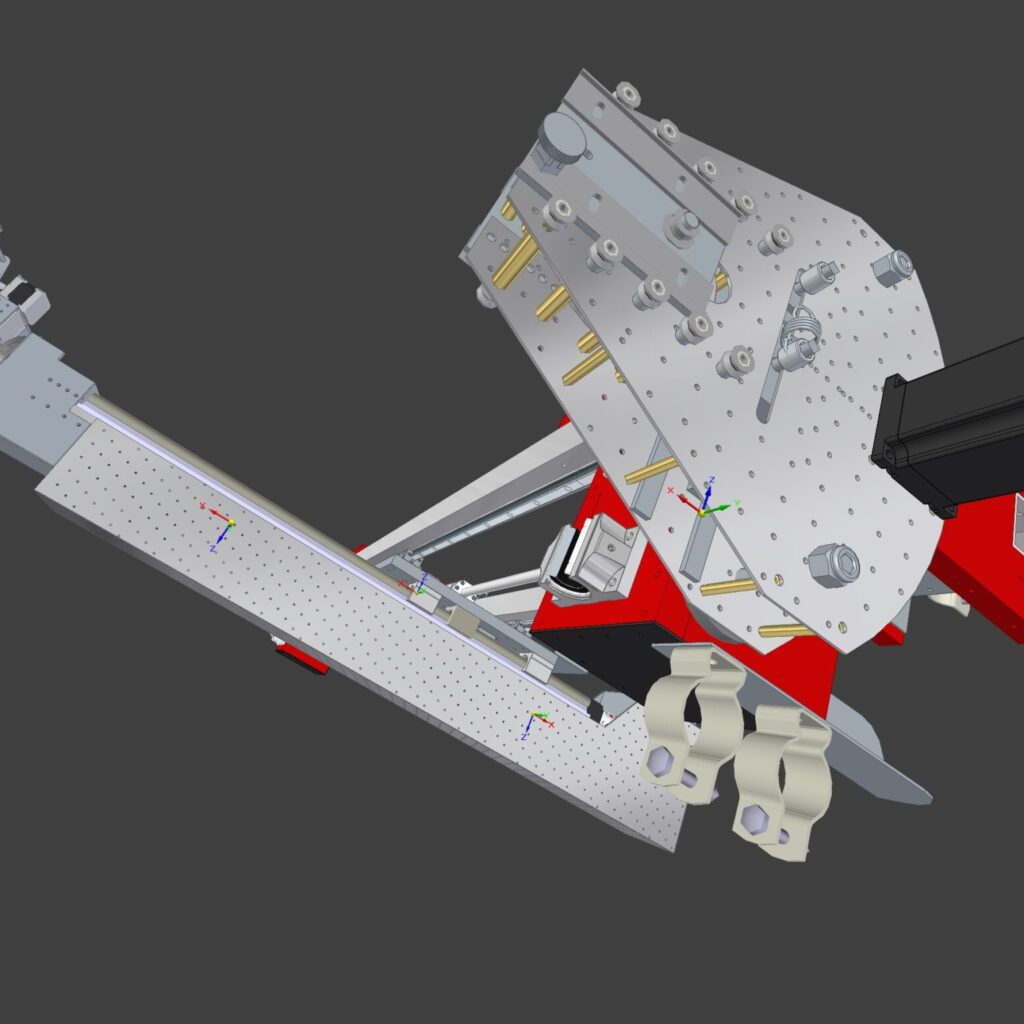

Improved Y-Axis Gear Train Pinion Suspension Holds Torque in both directions.
- The Common Control Arm Version only holds Torque in One Direction before the Pinion Skips the Track.

Z =
- 700 – 800MM Travel
  - Tall Z for a good 3.5’+ of
    - Foam, Wood, Plastics
- Upgrade in Process
  - to 1-2 Aluminum Z-Axis
  - to 3-4 Aluminum X Mount Z
Frame Cell Box:
- Gantry Cheap Wood Frame Pylons:
  - Bolt into Concrete Floor rigidly binding Frame Torque signifigantly
    - succesfully those Pylons tested suprisingly Stable & True
  - 5050 Extrusion is Expensive
    - The 3D CAD Modeler may Align a set of Plasma Cut Indexing Holes in Steel for adjustable Tables & Accesory.
      - Avoiding the high cost of 5050 Extrusion
  - Upgraded with a Steel Frame
    - adapting to any Torque or Ceiling Mount Orientation.
- Scalable in Size
- Multiple Entire Machines
  - may be butted together
    - Multiplying the Length by Multiple Machines
  - Outfitted with Multiple Trolleys working Multiple Frame Sections each.
- Modular Interchangeable Automated Cells & Sections
  - Ovens
  - Plasma Water Trough
  - Profiling Tables
  - Other Custom Designed Manufacturing may fit inside, scale, multiply, interchange & Trolley about the Full Volume of the Frame
