LinuxCNC:
- Backups of Linux OS Required Settings for easy Fresh OS Install:
- LAN Networking with Windows:
- smb.conf
- etc.fstab
- credential file
- LinuxCNC
- Configuration Files
- GPU & Display
- Multi-Monitors & USB can be troublesome
- LAN Networking with Windows:

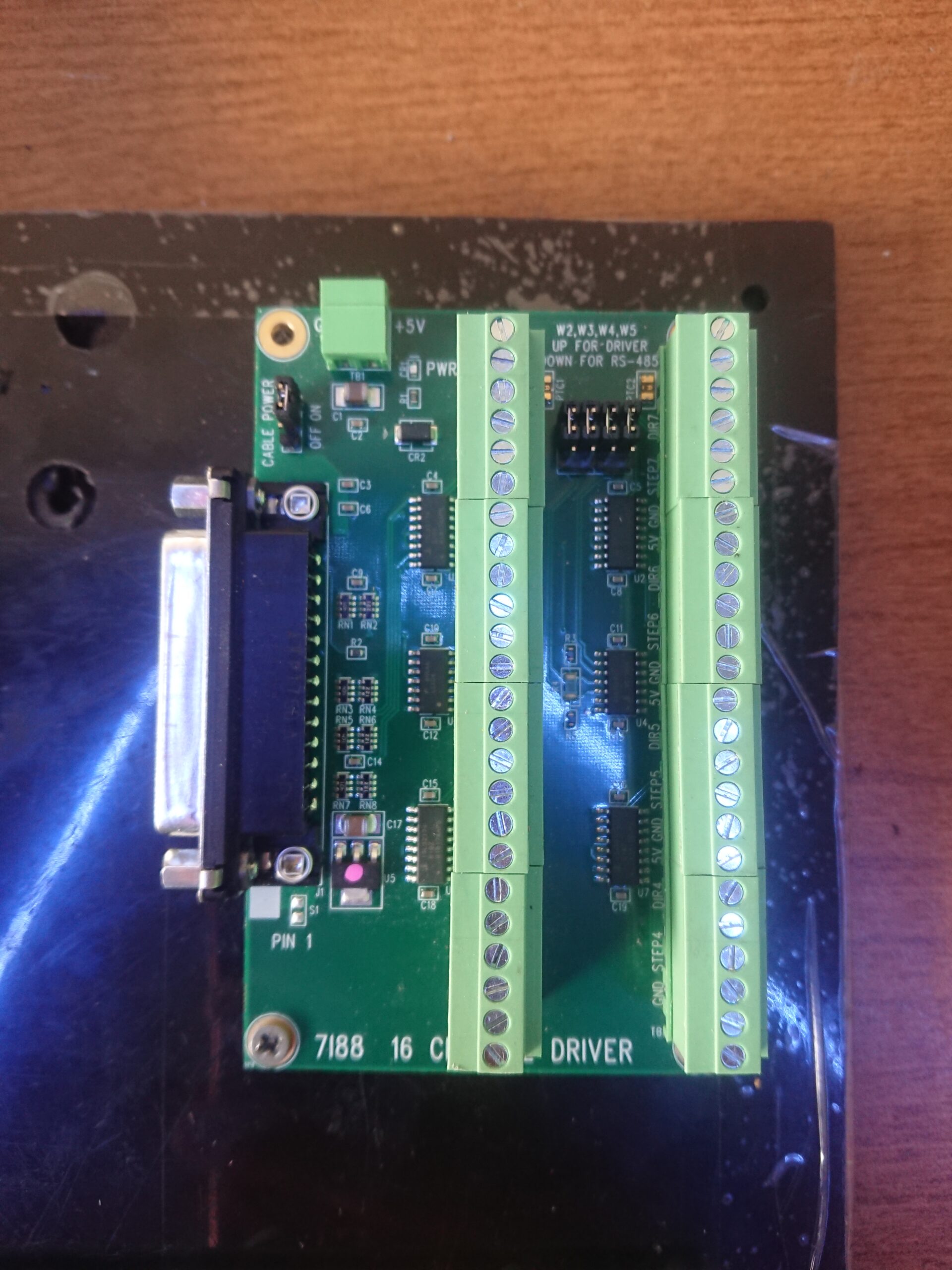

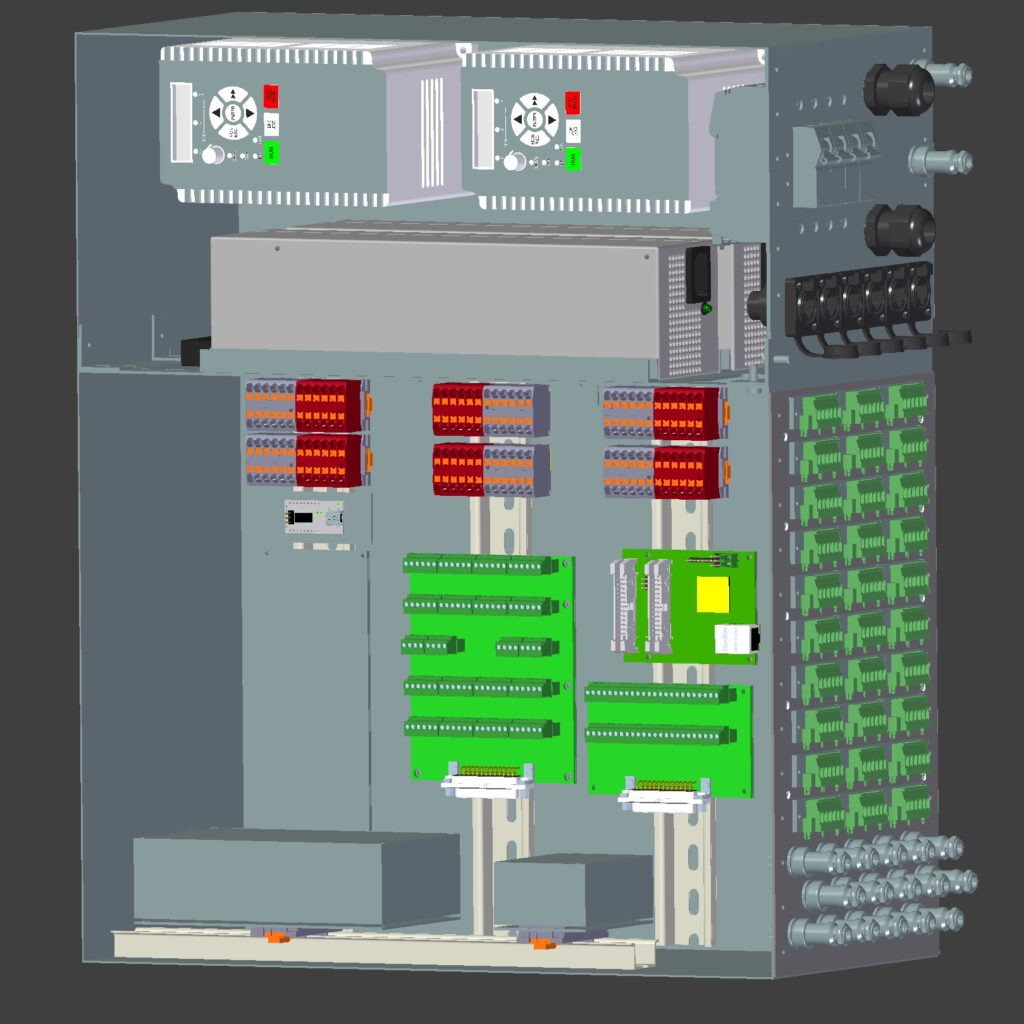

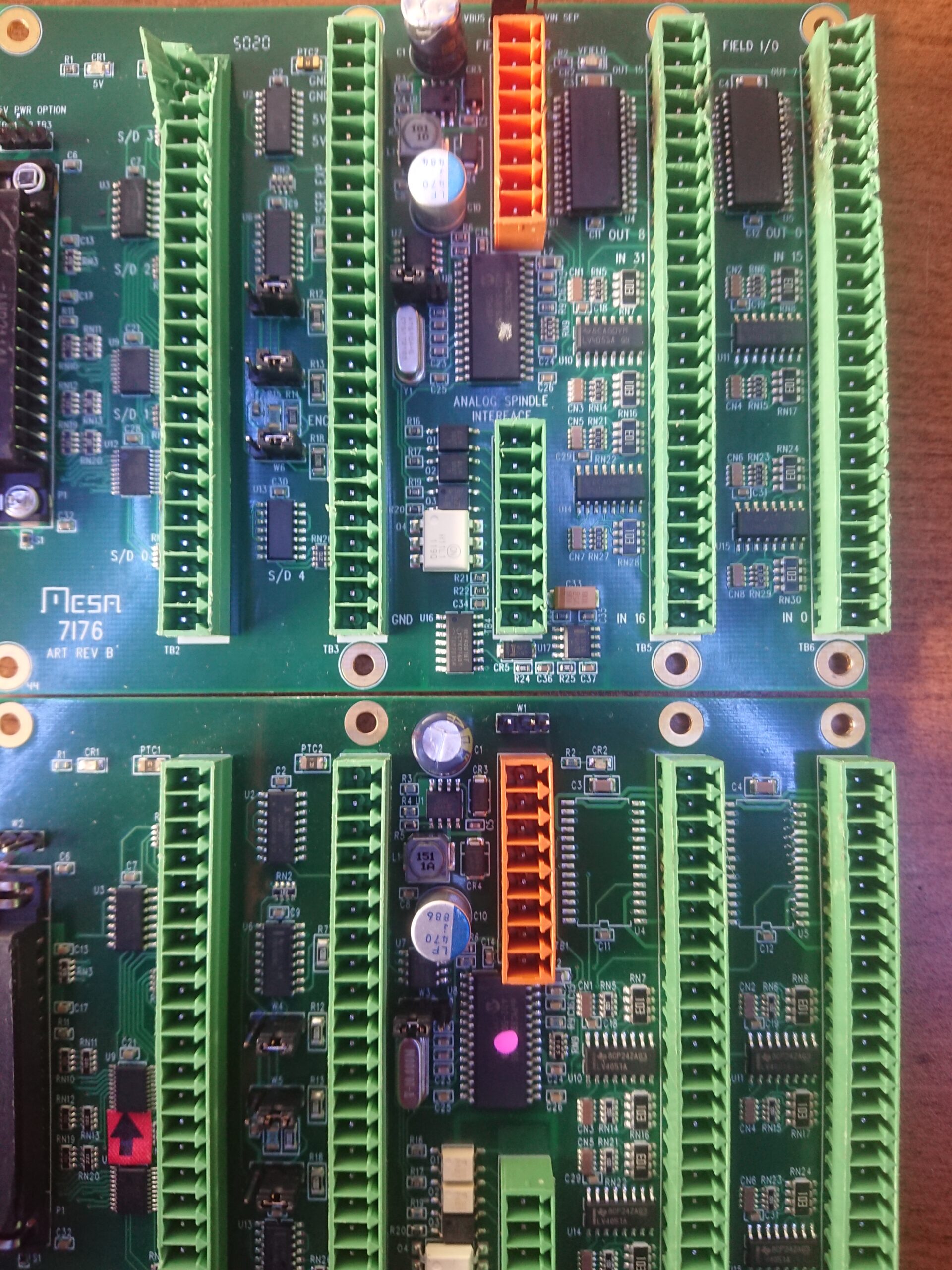

MESA Electronics:
- Offers Service of Mesa PLC Diagnostic & Repair
- Configuring the MESA Firmware for Specific CNC Goals
- Edit Logical Code in a Text Document
- Forum of MESA on LinuxCNC is Very Responsive attending to questions effectivley.
- Diagnostics:
- Use 5V LED to Test Circuits
- Wires & Connectors
- Pinout Color Code
- Continuity
- Pinout Color Code
- Use 5V LED to Test Circuits
VFD:
- Literacy with VFD Instruction Manual
- CAUTION:
- VFD Firmware does not have Failsafe Logic
- If Settings are Wrong
- It IS 220V LIVE & CAN BLOWUP !
- If Settings are Wrong
- VFD Firmware does not have Failsafe Logic
- Pinout
- to Function
- to Button
- to Panel
- of Logic
- to Function
- to Pinout
- to Function
- CAUTION:
- Goal:
- RPM on VFD Display Panel with CNC Operator GUI Control of Spindle
- Start, Stop, RPM, Accelerate, Decelerate
- Advanced Literacy & Logic with VFD Firmware is of the most difficult contingencies in the entire Machine.
- RPM on VFD Display Panel with CNC Operator GUI Control of Spindle
